Case Study: Fel’s ZM240 – A Fully Sealed Smart Pergola for All‑Weather Entertainment
Case Study: Fel’s ZM240 – A Fully Sealed Smart Pergola for All‑Weather Entertainment
The Brief: A Restaurant Owner with Big Ambitions

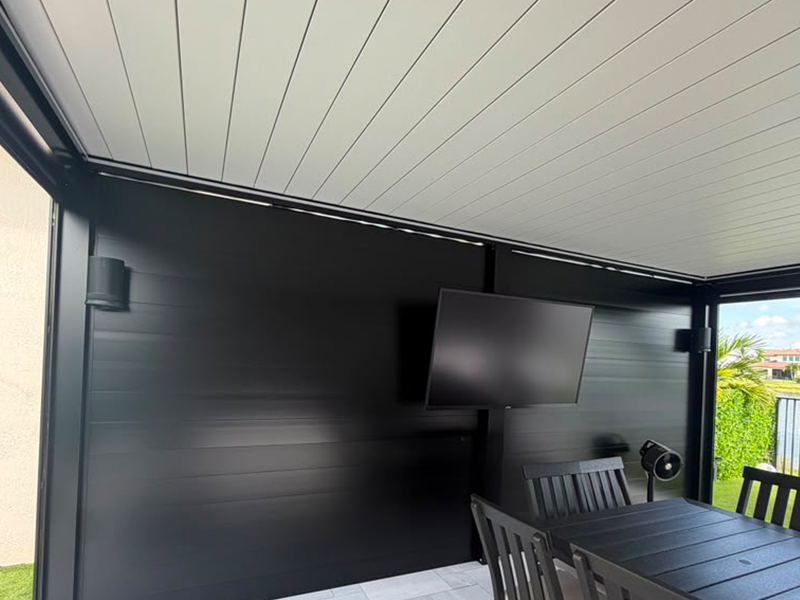

Fel, a homeowner in the U.S., wanted to transform his backyard into a year‑round living space – one that could handle afternoon sun, sudden rain, and evening bugs without compromising style or comfort. He chose the SUNC ZM240, a fully sealed aluminum louvered pergola sized 3.353m × 5.791m (approx. 11′ × 19′) with a 2.8m height. The black frame and white louvers create a sleek, modern look, while a built‑in TV wall (finished with black aluminum composite panels) turns the patio into an outdoor entertainment hub.

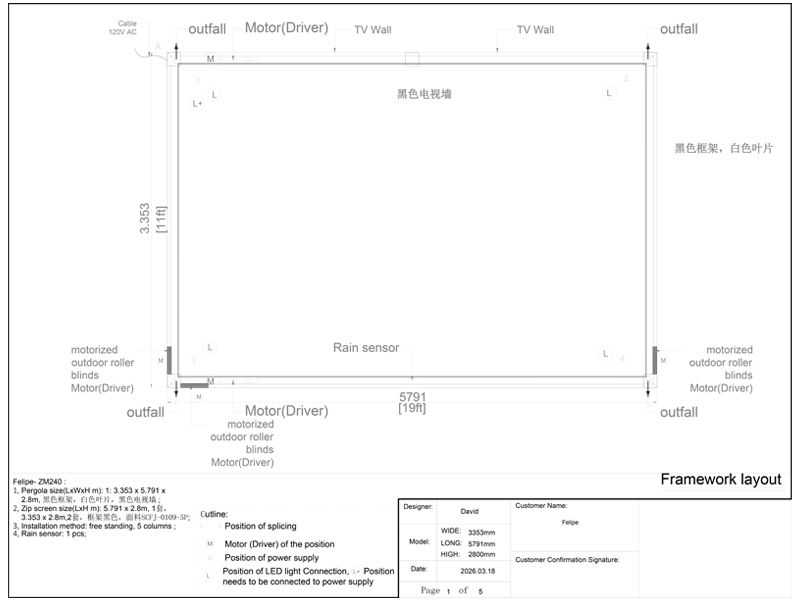

To enclose the space, Fel added three windproof zip screens – one panel at 5.791m × 2.8m and two at 3.353m × 2.8m – all in a black frame with fabric code SCFJ‑0109‑5P. The pergola is freestanding on five sturdy columns, and it comes with a rain sensor that automatically closes the motorized roof at the drop of rain, protecting furniture and electronics without any manual effort.
-
1. Smart, Silent, and Certified
The roof is powered by a 24V DC silent motor, which operates so quietly that Fel and his family barely notice it – whether they’re inside or outside the structure. The motor holds IP67, TÜV, CE, and SGS certifications, guaranteeing durability and safety even in harsh weather. Paired with a reliable controller, the system delivers smooth, trouble‑free performance for years.
Blade Beam Post
Size 220×50×2.0 mm 240×160×2.5 mm 160×160×2.5mm (8.661×1.968×0.079 inches) (9.45 × 6.29 × 0.1 inches) (6.299 × 6.299 × 0.098 inches) Material Aluminum alloy 6063-T66 & SUS 316 metal parts Sealing strip Soft sealing strip that won't harden for 20 years—comparable in quality to automotive sealing strips -
2.Superior Sealing – Dry, Comfortable, and Pest‑Free
What sets the ZM240 apart is its advanced sealing system. When closed, the interlocking roof blades form a watertight seal, directing rain and melted snow into hidden gutters within the beams. Water flows through internal downspouts and exits through discrete drainage openings at the base, with a drainage rate of 0.5–1.5 L/s per metre – so Fel’s patio stays completely dry, even during heavy downpours.
The heavy‑duty airtight sealing also creates a fully enclosed thermal space, making it for integrating an air conditioner or heater. Fel can enjoy consistent comfort in summer and winter while maximising energy efficiency by preventing temperature loss. Plus, the precision‑engineered blades with continuous rubber gaskets form a gapless barrier against mosquitoes, flies, spiders, and other pests – meaning no more bug spray needed for evening gatherings.
-
3.Worry‑Free Warranty
SUNC stands behind every component: the aluminum alloy frame comes with a 15‑year warranty; the motor is covered for 3 years (with free replacement within the year, and only shipping fees required after the second year); and the controller has a 2‑year warranty. If any issue arises during the warranty period, Fel receives a free replacement – giving him total peace of mind.
Fel’s Feedback
> “This pergola has completely changed our outdoor lifestyle. We host game nights, family dinners, and quiet afternoons without worrying about weather or insects. The rain sensor is a lifesaver, and the sealed system means our TV and furniture stay safe. It’s the investment we’ve made for our home.”
The ZM240 blends cutting‑edge engineering with thoughtful design – delivering a dry, comfortable, and bug‑free outdoor room that Fel can enjoy all year round, rain or shine.
