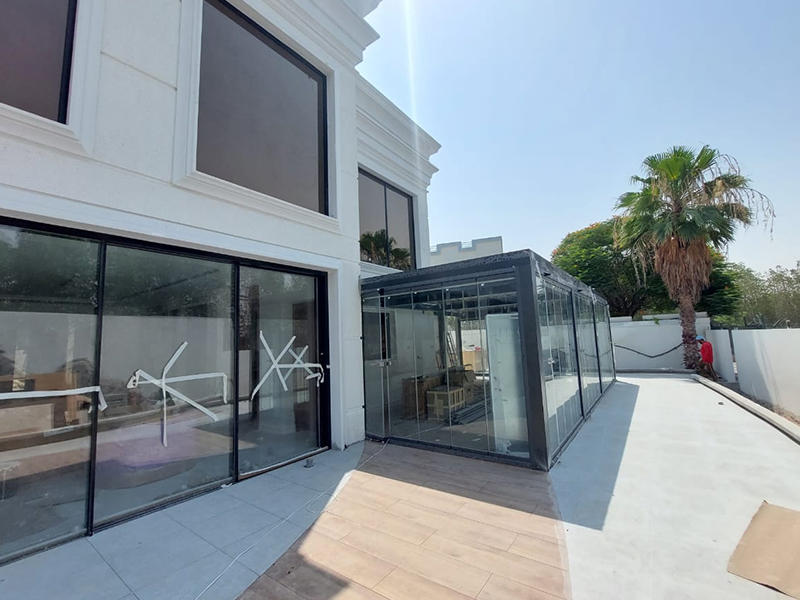

The Z200 model is our premium solution for high-end villas – and this 10×16 ft installation proves why. Every profile is precision-engineered from6063-T66 aluminum, a marine-grade alloy offering an exceptional strength-to-weight ratio and natural corrosion resistance. Combined with a high-durability powder coat, the structure resists fading, chalking, and salt-air degradation – critical for coastal and desert environments.

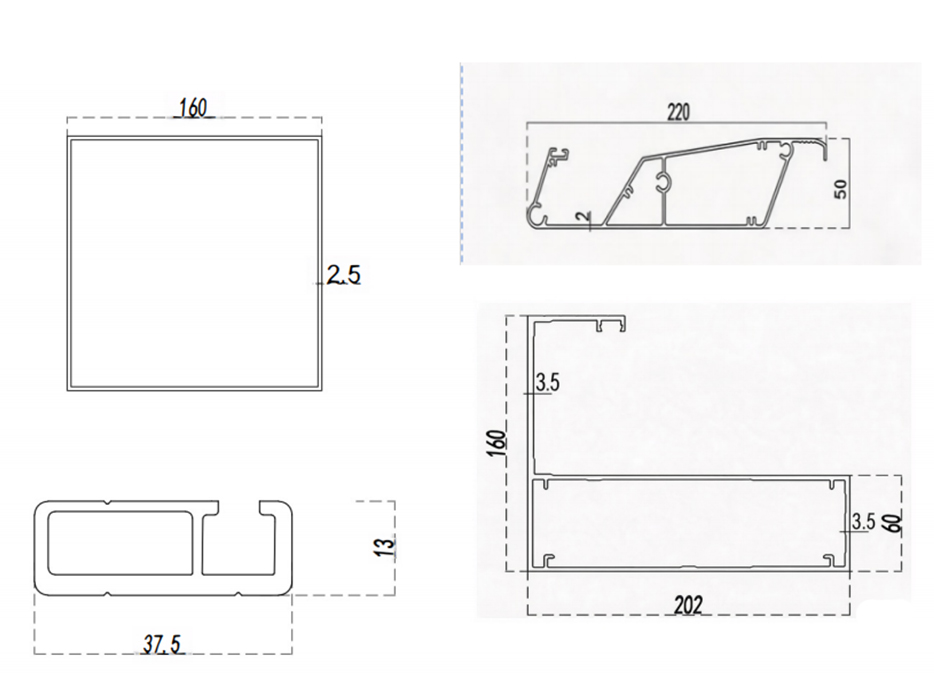

• Blade (220×50×2mm): Provides load-bearing capacity for wide spans, ensuring rigidity without bulky visual mass.
• Beam (202×160×3.5mm): Acts as the primary structural backbone, supporting the glass enclosure and withstanding wind uplift common in Dubai’s open terraces.
• Post (160×160×2.5mm): Offers a slim yet robust vertical support, enabling the frameless glass system to slide smoothly while maintaining architectural minimalism.





  The result? A structure that feels light and open, yet delivers industrial-grade resilience against 45°C+ heat and occasional sandstorms.

The villa’s light-toned façade called for a striking contrast – hence the matte black finish of the Z200 pergola. This choice not only anchors the terrace visually but also absorbs less reflected glare, keeping the surrounding area comfortable.

The 10×16 feet print was custom-mapped to the existing terrace, providing generous coverage for a lounge and dining zone without overwhelming the outdoor space. The clean, linear profiles of the Z200 complement contemporary Dubai architecture, where straight lines and open planes are celebrated.

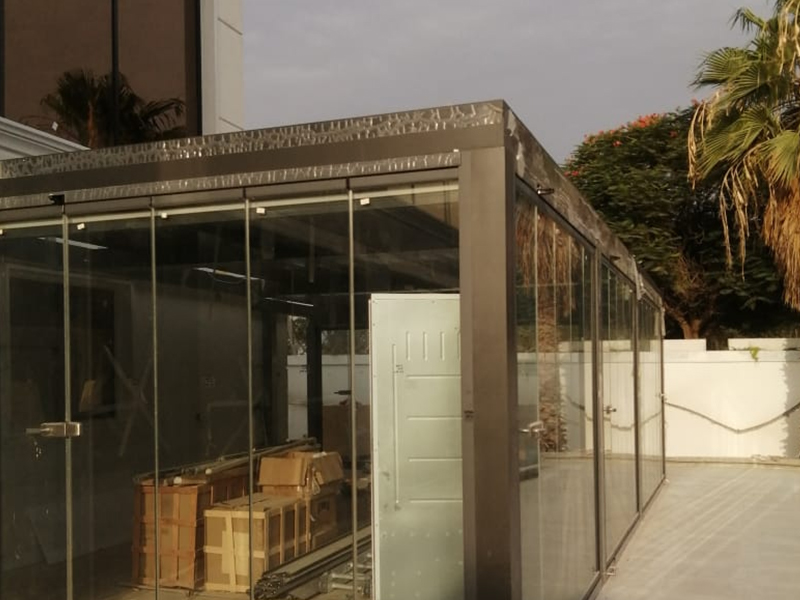

1. Frameless Glass Sliding Doors (Full Perimeter)

Instead of fixed walls, the entire enclosure uses high-clarity, tempered frameless glass doors. This design:

• Preserves uninterrupted panoramic views of the garden and skyline.
• Creates a weather-proof barrier against dust, wind, and occasional rain.
• Allows complete open-air conversion when doors are retracted – true indoor-outdoor flexibility.

2. Integrated LED Perimeter Lighting

Subtly embedded within the beam structure, the LED system delivers:

• Warm, dimmable ambient light for evening entertaining.
• Enhanced safety along the glass door tracks.
• A luxurious “glow” effect that highlights the pergola’s clean geometry at night.

3. Climate-Ready Performance

When paired with portable or ceiling-mounted cooling, the glass enclosure traps chilled air, making the terrace usable even during July’s peak heat. In cooler months, opening the doors invites natural breezes – a versatile solution for Dubai’s two-season climate.

Searching for “aluminum pergola Dubai” or “outdoor glass enclosure UAE”? This project directly addresses the top concerns of local luxury buyers:

• Dust Mitigation: The tight-sealing glass doors reduce sand ingress by over 90%, keeping furnishings clean and maintenance minimal – a major selling point for busy professionals.
• UV Protection: The powder-coated aluminum and optional sun-shading blades (not shown, but compatible) protect against harmful UV rays, preserving outdoor fabrics and finishes.
• Value Addition: A permanent, high-spec structure like this Z200 pergola adds measurable square footage to the villa’s usable area, boosting resale appeal in Dubai’s competitive property market.

Low Maintenance: No rust, no warping, no repainting – just occasional cleaning, which aligns with the low-maintenance lifestyle expected in premium communities (Palm Jumeirah, Emirates Hills, Al Barari).

“We wanted a terrace that felt like an extension of our living room – but could handle Dubai’s summer. The Z200 pergola delivered exactly that. The frameless glass gives us stunning views, the black finish looks incredibly chic, and we’ve already hosted several dinners outdoors without worrying about dust or heat. It’s been a game-changer for our home.”
– Villa Owner, Dubai

This 10×16-feet Z200 pergola installation is not just a product showcase – it’s a proven solution for homeowners who refuse to compromise on design, durability, or comfort. By combining premium aluminum alloys, frameless glass, and integrated lighting, we’ve created a space that serves as a lounge, dining room, and private retreat – all year round.

For architects, developers, and villa owners across Dubai, the Z200 represents the gold standard in outdoor structure innovation. Whether you’re planning a new build or a terrace upgrade, this project demonstrates what’s possible when engineering meets elegance.

Contact our Dubai team for a consultation – we’ll custom-design a pergola that fits your space, style, and climate needs.
